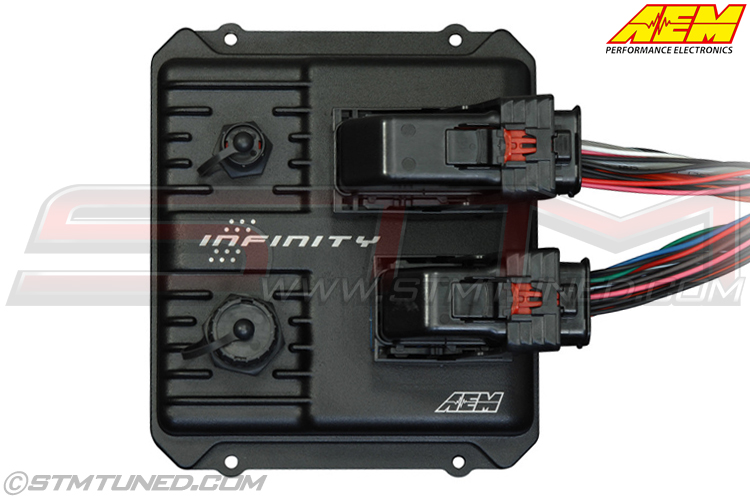

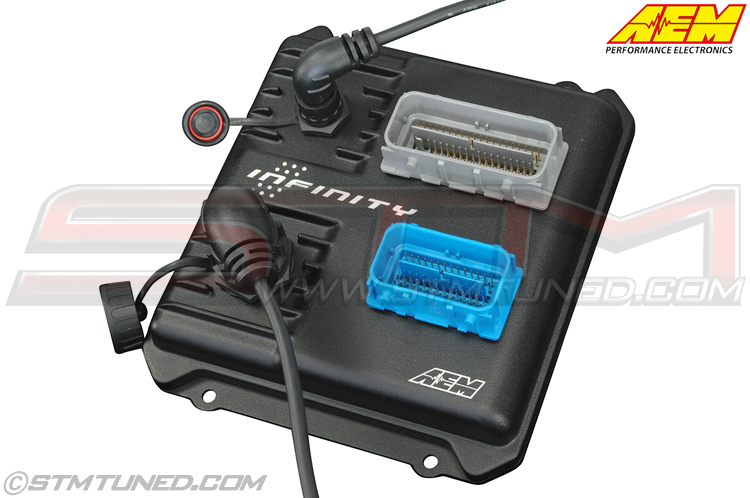

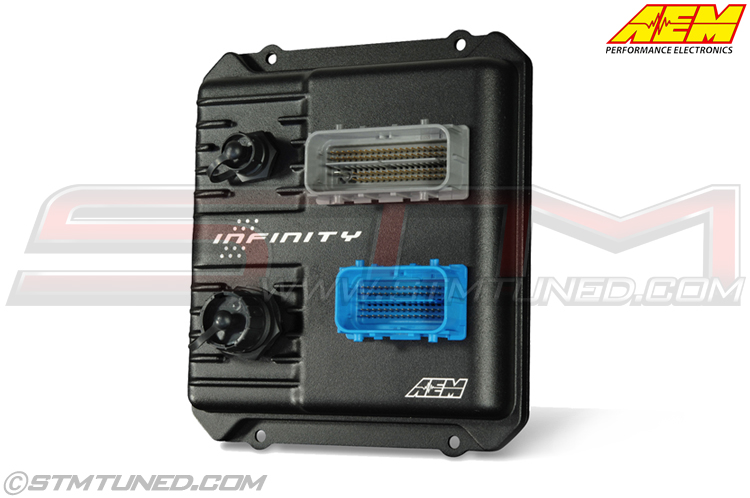

AEM Infinity Series 7 Stand Alone ECU (708, 710 & 712)

Fits these Applications:
Universal Product

Part Numbers:
30-7101 (708 - For up to 8 Cylinders)
30-7100 (710 - For up to 10 Cylinders)
30-7111 (712 - For up to 8 Cylinders)

The AEM Infinity Series 7 ECU delivers state-of-the-art programmable EFI control capabilities typically found only at upper echelons of Motorsports. Through the Infinity ECU, AEM makes this technology affordable for both professional race teams and amateur racers.

Late model vehicle ECUs all run on faster processors. The Infinity ECU is built around a latest-generation 32 bit floating point 200MHz automotive processor and Real Time Operating System (RTOS), which is capable of processing 400 MIPS (millions of instructions per second). By comparison, common competitive systems typically use 20MHz to 50MHz processors. To our knowledge, the Infinity ECU currently has the fastest processing speed of any aftermarket Motorsports ECU available. This allows the Infinity to do more, faster, in a more stable programming environment.

200MHz Processor and Real Time Operating System:
- More responsive, for a better driving experience
- More accurate ignition timing, which enables an engine to create more power
- Perform more computational features with no sacrifice in processing performance
- Strategic processing with optimized load balancing
- Tuning one feature will not affect the performance of another feature

Features:
- Airflow model based (VE) tuning
- ECU Set Up Wizard simplifies start up
- Flex fuel compatible
- Multi fuel capable
- Drive by wire
- Variable valve control
- Multiple boost control strategies
- Nitrous control
- Map switching
- Dual internal Lambda controllers
- Dual knock sensing circuits
- Data logging up to 64GB, up to 100 channels at 1KHz
- Outputs to 3rd party dashes and data loggers
- Industry leading data transfer speed (up to 480Mb/sec)
- Integrated engine protection strategies

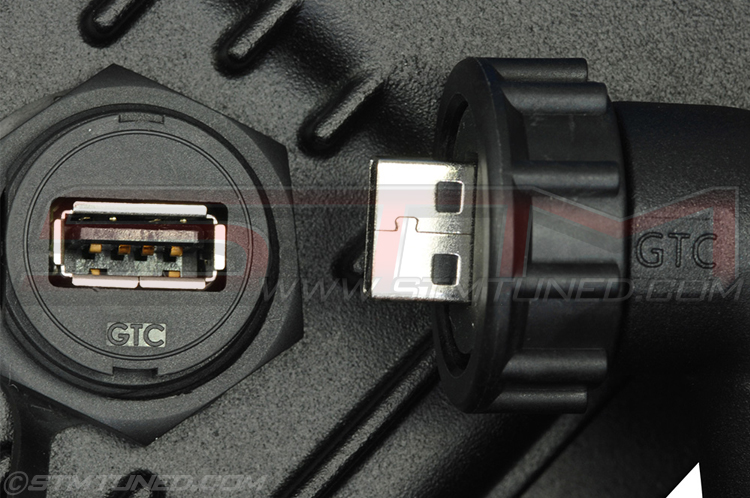

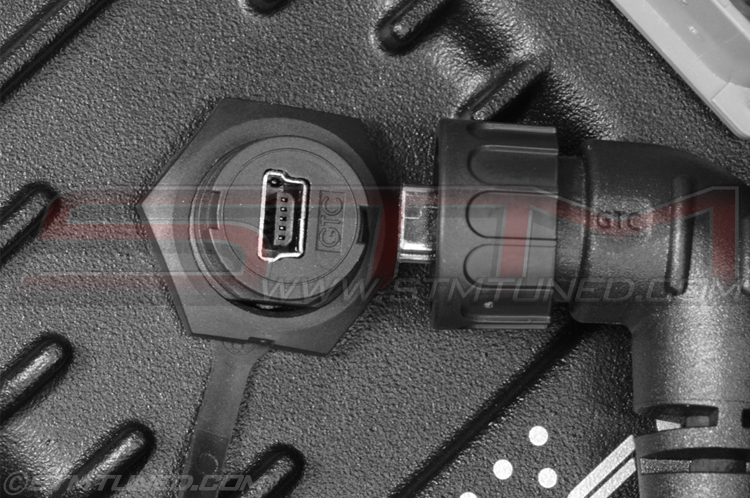

- Sealed enclosure and IP67 rated comms ports

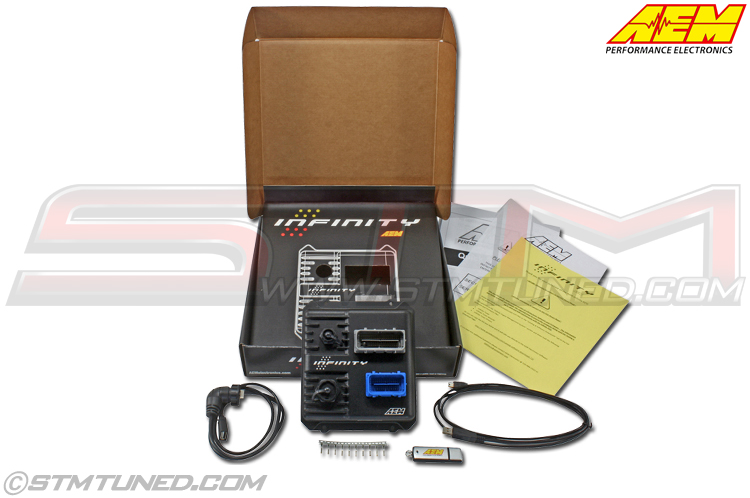

Includes:
(1) Instructions & Manual
(1) Infinity ECU

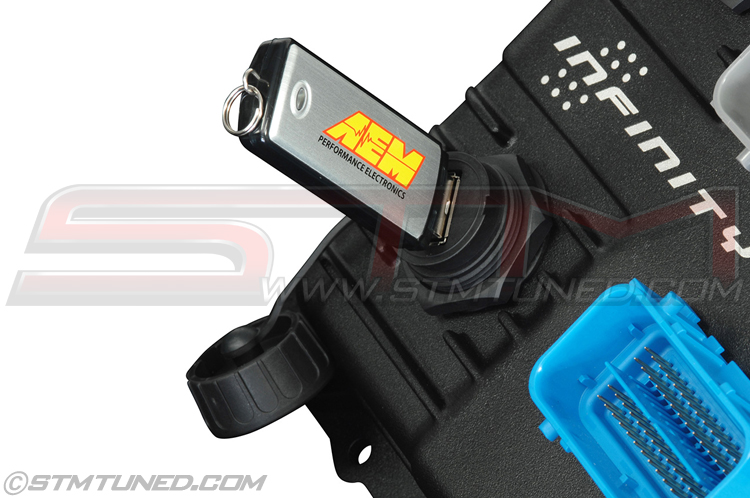

(1) AEM USB
(1) Pin Set
(2) Cables


Review all specs at aemelectronics.com

SPECIFICATIONS	INFINITY 708	INFINITY 710	INFINITY 712
2-Stroke Engines	Yes	Yes	Yes
4-Stroke Engines	Yes	Yes	Yes
Cylinders	Up to 8	Up to 10	Up to 8
High Impedence Injectors	Up to 8	Up to 10	Up to 12
High Impedence Injectors (Sequential)	Up to 8	Up to 10	Up to 8
Low Impedence Injectors	Up to 8	Up to 10	Up to 12
Low Impedence Injectors(Sequential)	Up to 8	Up to 10	Up to 8
Coils (0-5V Falling Edge)	Up to 8	Up to 10	Up to 8
Digital Inputs	Up to 8	Up to 8	Up to 8
VR/Mag Inputs	Up to 6	Up to 6	Up to 6
Analog Voltage Inputs	Up to 17	Up to 17	Up to 17
Analog Temp Inputs	Up to 6	Up to 6	Up to 6
Knock Control	2-Channel	2-Channel	2-Channel
On Board Wideband Air/Fuel Controllers	2	2	2
Drive-By-Wire	Dual	Dual	Dual
H-Bridge Channels	2	2	2
High Side Outputs	Up to 2	Up to 2	Up to 2
Low Side Outputs	10	10	10
Low Side Outputs that can be PWM	10	10	10
4-Wire Stepper Motor Control	Yes	Yes	Yes
CAN Channels	2	2	2
Boost Control (RPM, Time, Gear, VSS Switch Input, Flex Fuel Content)	Yes	Yes	Yes
Variable Cam Control	Up to 4	Up to 4	Up to 4
Engine Protection*	Yes	Yes	Yes
Launch Control	Yes	Yes	Yes
Nitrous Control	Up to 4-Stage	Up to 4-Stage	Up to 4-Stage
Traction Control	Up to 4-Wheel Speed	Up to 4-Wheel Speed	Up to 4-Wheel Speed
Data Logging	Up to 64GB	Up to 64GB	Up to 64GB
Weather Resistant Sealed Electronics	Yes	Yes	Yes
Connector Pins	129	129	129
Enclosure Dimensions	6.75" x 6" x 1.8"	6.75" x 6" x 1.8"	6.75" x 6" x 1.8"
Weight	24oz / 680.4g	24oz / 680.4g	24oz / 680.4g
