AEM 92-95 Honda OBDI Infinity Plug & Play Harness for Series 5 ECU

Fits these Applications:
1992-1995 B/D/H Series Honda/Acura OBDI

Part Number:

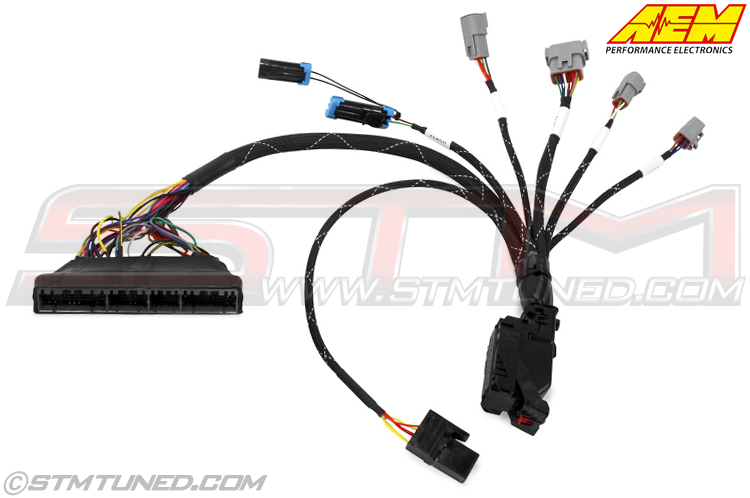

30-3501 (Pictured)

Infinity Honda/Acura B/D/H Series OBDI Plug & Play Harness with Expansion Port.

Once you have determined which Infinity ECU will best support your OBDI Honda B/D/H-Series M/T engine, you will need to purchase the B/D/H OBDI adapter harness (PN 30-3501). AEM's Plug & Play harness for Honda/Acura OBDI B/D/H engines includes a Wideband O2 connector, AEMnet connector for communication with other AEMnet enabled devices and an auxiliary connector with a High Performance DTM-Style 12P connector for adding common aftermarket sensors including fuel pressure, air inlet temperature, MAP, oil temperature and ethanol content sensor. The expansion port also includes a sensor ground, 5v reference, 12v power from relay and high side output for activating a relay or solenoid, a low side output for boost control and analog inputs for mode switch and no-lift shift.

Coil-On-Plug Ready Adapter Harness:
The ignition coil High Performance DTM-Style connectors on Honda/Acura OBDI B/D/H adapter harnesses enables racers to easily convert their race engine to coil-on-plug without having to modify the ECU's connector or make any changes to the jumpers in the ECU. For racers who are still running a distributed ignition, an ignition coil adapter is available that plugs into the ignition coil High Performance DTM-Style connector (PN 30-3501-00, sold separately).

Review all specs at aemelectronics.com
