AEM 00-05 Honda S2000 Infinity Plug & Play Harness for Series 5 ECU
Fits these Applications:
2000-2005 Honda S2000 M/T Engine
Part Number:

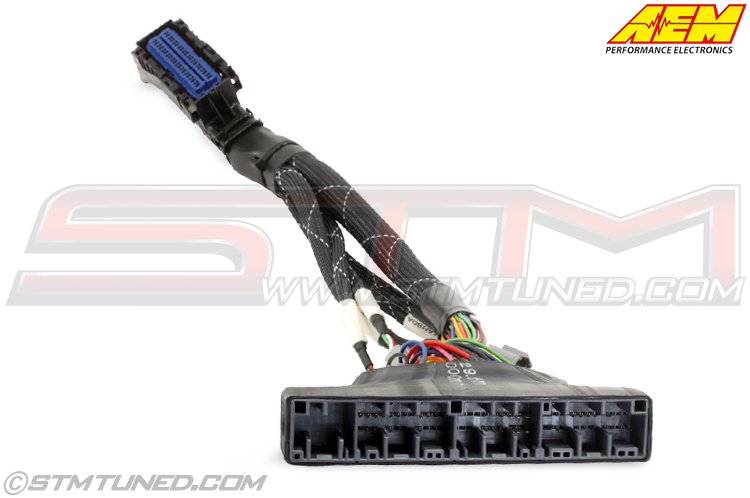

30-3508 (Pictured)
Infinity Honda S2000 Plug & Play Harness with Expansion Port.
Once you have determined which Infinity ECU will best support your 2000-2005 Honda S2000 M/T engine, you will need to purchase this S2000 Plug & Play adapter harness (PN 30-3508). AEM's Plug & Play harness for Honda S2000 engines includes a Wideband O2 connector, AEMnet connector for communication with other AEMnet enabled devices and an auxiliary connector with a High Performance DTM-Style 12P connector for adding common aftermarket sensors including fuel pressure, air inlet temperature, MAP, oil temperature and ethanol content sensor. The expansion port also includes a sensor ground, 5v reference, 12v power from relay and high side output for activating a relay or solenoid, a low side output for boost control and analog inputs for mode switch and no-lift shift.
