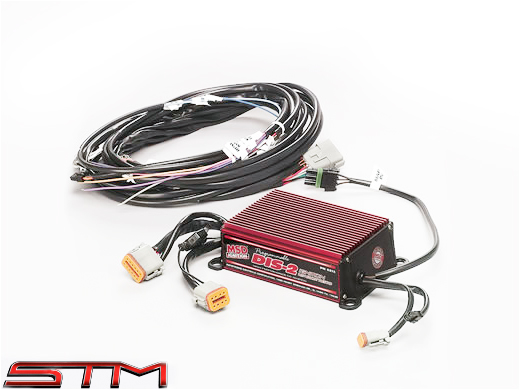

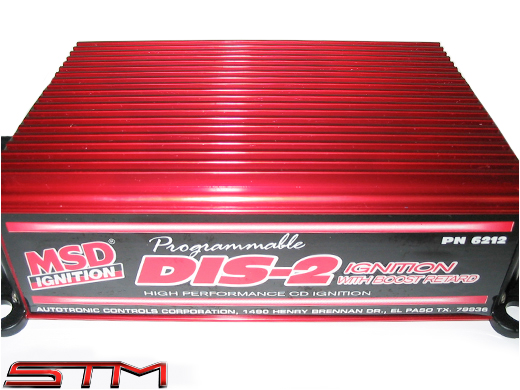

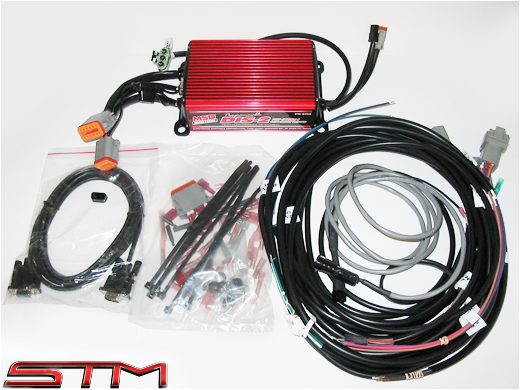

MSD Programable DIS-2 Ignition $660

MSD ARC-2 CDI

Benefit from the incredible spark energy of the the new MSD Programmable DIS-2 Ignition Control as well as its ignition programming capabilities!

MSD's CD circuits work with state-of-the-art IGBT coil drivers to deliver a spark with 190 mj of spark energy! Below 3,300 rpm, there is series of multiple sparks that burns in the cylinder for 20° producing a smooth idle with great throttle response.

You get to control all of this spark energy through an incredible array of timing and rpm programs. The heart of the Programmable DIS-2 is a 15Mh microprocessor that reviews, analyzes and manages every trigger signal and is capable of up to 15 million instructions per second! The end result is a powerful ignition control with endless programming capabilities to produce reliable performance.

Operating Voltage: 11-18 Volts, Negative Ground
Current Draw: 8 Amps @ 10,000 RPM
RPM Range: 15,000 RPM with 14 Volt Input
Spark Duration: 20°
Spark Energy: 190 millijoules Per Spark
Voltage Output Max: Primary: 500 Volts Output Voltage, 50,000 w/ Blaster Coils

PROGRAM FUNCTIONS:
Individual Cylinder Timing: Maximize the performance of each cylinder to compensate for differing dynamics in airflow and other variances. The spark to each cylinder can be adjusted up to 5° in 0.1° increments which will eliminate any compromises in timing while developing the full potential of the engine.

Launch Timing Curve: Program a separate timing curve exclusively for the launch! This is a big help in compensating for varying track conditions to maximize traction.

Boost Timing Curve: For turbo or superchargered applications an optional MAP sensor can be installed so you can control the ignition timing in relation to boost pressure. The timing can be programmed from 0° - 25° in conjunction to for boost pressure ranging from 0 - 45 psi in 0.50 psi increments.

Multi-Step Retard: Three separate stages of retard can be activated by either rpm or a separate activation wire. This is perfect for all nitrous applications. Programmable from 0°-15° in 0.1 degree increments within 800 - 15,000 rpm in 100 rpm steps.

Gear RPM and Retards: Program a different rpm shift point for each gear as well as a retard for every gear change.

Three Rev Limits: Set three different rev limits for the burnout, the holeshot and top end overrev protection in 100 rpm increments.
