Manley Platinum Series Piston R35 GTR (84.4mm STD/Grade 1) $181 Manley Platinum Series Piston R35 GTR (84.4mm STD/Grade 2) $181 Manley Platinum Series Piston R35 GTR (84.4mm STD/Grade 3) $181 Manley Platinum Series Piston R35 GTR (94.4mm Stroker/Grade 1) $181 Manley Platinum Series Piston R35 GTR (94.4mm Stroker/Grade 2) $181 Manley Platinum Series Piston R35 GTR (94.4mm Stroker/Grade 3) $181

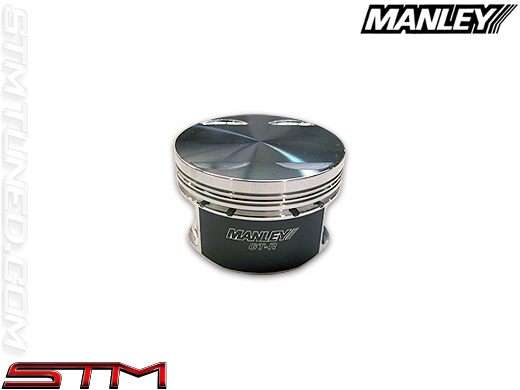

Manley Platinum Series Lightweight Pistons

- 2009+ R35 GTR VR38DETT

An Industry First!
These pistons feature skirt diameters that correspond to the OEM Grade 1, 2 or 3 bores.
You will find a six digit sequence on the back of your engine block, passenger side near the firewall. Check the bore grades, and order the appropriate quantities of Grade 1, 2 or 3 pistons.

Because of the different grades, THESE PISTONS ARE SOLD INDIVIDUALLY. Please order carefully!

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower.

All GT-R pistons come with moly coated skirts, round wire locks, premium chrome moly wrist pins, and premium steel top ring with napier second sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available.

- 2618 high strength material
- Offset wrist pin for quiet start-ups
- 2.500" x .180" wall Premium Chrome Moly pin included P/N 42346
- 9310 alloy .210" wall pin upgrades available P/N 42546
- Pressure balance groove
- Will accommodate +1mm valve sizes
- Premium Steel 1.2mm top ring set with 1.2mm Napier second ring and 9-13lb.
- Tension 3mm oil ring included
- .260 Crown thickness
- Round wire locks included
