HKS Timer Type-1 ONLY $170   Timer and Harness (95-99 DSM) $190 Timer and Harness (90-94 DSM) $190 Timer and Harness (Evo VIII-IX) $190 Timer and Harness (Evo X) $190 Timer and Harness (91-99 3000GT) $190 Timer and Harness (90-93 Galant VR4) $190 Timer and Harness (Impreza RS 97-2000) $190 Timer and Harness (WRX/STI 2002-07) $190 Timer and Harness (STI 2008+) $200   Harness ONLY (95-99 DSM) $20 Harness ONLY (90-94 DSM) $20 Harness ONLY (Evo VIII-IX) $20 Harness ONLY (Evo X) $20 Harness ONLY (91-99 3000GT) $20 Harness ONLY (90-93 Galant VR4) $20 Harness ONLY (Impreza RS 97-2000) $20 Harness ONLY (WRX/STI 2002-07) $20 Harness ONLY (STI 2008+) $30

- Part # 41001-AK010
- Positive Lit LCD: Blue Back Light
- Black Display Case
   Width: 89.5mm
   Height: 22.5mm
   Depth: 13mm

- LCD Display
   Width: 41.5mm
   Height: 11mm

- Black Control Unit Case
   Width: 69mm
   Height: 80mm
   Depth: 21mm

- Timer Functions:
   Manual Mode (0-10 Minutes)
   Memory Mode #1 (1 touch, 1 Minute Setting)
   Memory Mode #2 (1 touch, 3 Minute Setting)
   Auto Mode (0-5 Minute Setting)

- Battery Voltage Display:
   Battery Voltage
   Peak Value Indication
   ON/OFF Warning Function

- Vehicle Speed Indication Function:
   Vehicle Speed
   Peak Speed Hold Value
   Speed Warning Function

- Engine RPM Indication Function:
   Engine RPM
   Peak Engine RPM Hold Value
   Engine RPM Warning Function

- Display in either MPH/SAE or KPH/Metric

- Metric Distance Time Functions:
   Acceleration Distance (0-100m, 0-200m, 0-400m)
   Section Time (200-400m)
   Acceleration Time (0-100km/h, 100-150km/h)
   Auto or Manual Start for Quarter Mile Function

- SAE Distance Time Functions:
   Acceleration Distance (0-60 foot, 0-1/8 mile, 0-1/4 mile)
   Auto or Manual Start for Quarter Mile Function

- Stopwatch Tool Time Measurement
   Total Elapsed Time
   Lap Times

- Compatible with all HKS Turbo Timer Harnesses.

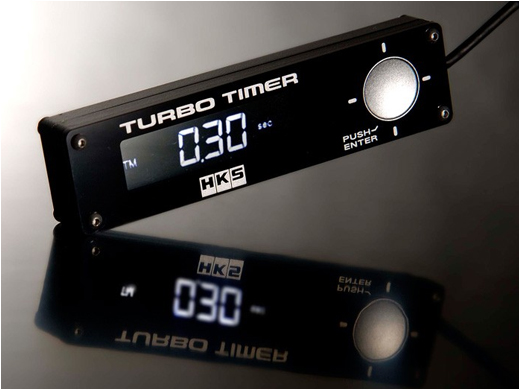

- Picture may vary by application.
