FUELAB | PRODIGY IN-LINE FUEL PUMPS | 41401 | 41402 | 42401 | 42402
|
|
 |
|
41401: High Pressure EFI In Line Fuel Pump

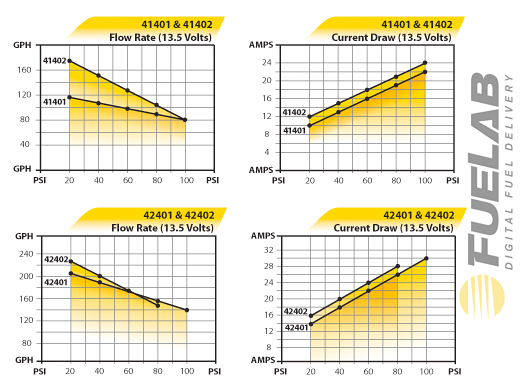

- 105 GPH (Gallons Per Hour) @ 45 PSI - RATED UP TO 1000HP
- The original digital Prodigy fuel pump, great for street, strip, or off-road use.
$408.00
41402: High Efficiency EFI In Line Fuel Pump
- 140 GPH @ 45 PSI - RATED UP TO 1300HP
- Increase performance capabilities with extra flow for higher powered engines.
$425.00
42401: High Pressure EFI In-Line Fuel Pump
- 170 GPH @ 45 PSI - RATED UP TO 1500HP
- Throw in as much boost as you want, this model will support up to 1500 horsepower at high pressures.
$514.00
42402: High Power EFI In-Line Fuel Pump
- 190 GPH @ 45 PSI - RATED UP TO 1800HP
- The top of the line... supports very high horsepower!
$650.00

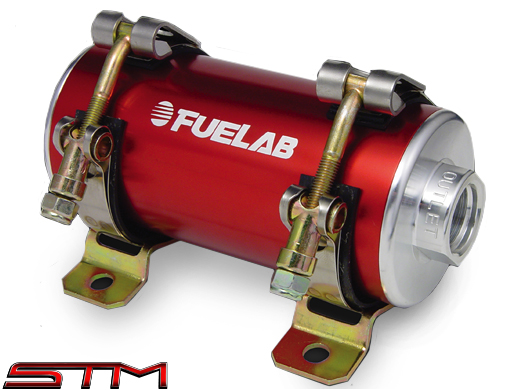

FUELAB has taken Fuel Delivery to the next level... Digital.
Prodigy Fuel Pumps are the automotive aftermarket's first and only speed controllable DC brushless driven fuel pump. Fuelab's award-winning, patent pending designs offer improved durability, substantially higher efficiency, and lower current draw.
With digital fuel delivery you get unheard of electro-mechanical efficiencies in a package half the size of competing pumps. Four models are available ranging in performance levels; with flow rates up to 200GPH and operating pressures up to 125PSI.
Pump Features:
- Only in line pump compatible with gasoline, diesel, methanol, and ethanol
- High efficiency sling vane positive displacement pump
- Special housing shape for extremely quiet operation and steady pressure
- Carbon 9-vane construction with pressure balanced rotor for high reliability
- Backed by a 2-year limited FUELAB warranty
Motor Features:
- Lightweight super-efficient dc brushless motor reduces current draw
- Low mass rotor for high speed reaction to changes in speed and flow
- Powerful high flux density Neodymium rare earth magnets
- No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
- Wet motor design, no dynamic shaft seals that can wear
Electronic Features:
- Internal speed controller for variable flow operation
- Accepts 0-5 Volt signal for speed control
- 12 to 16 volt vehicle electrical system compatibility
- No expensive voltage reduction/pulse width modulation controllers required
- Continuous duty-motor speed can be adjusted for street or strip fuel demand
Construction Features:
- Compact, lightweight design, 3 lbs, overall length 6.9", diameter 2.63"
- Billet Aluminum Construction with anodize per MIL-A-8625, Type II
- High quality mounting brackets included
- Long-life, multi-fuel compatible Fluorosilicone static seals
- Accepts standard or port style -10AN fittings
|
|
|
|
