Cosworth Evo X Head Gasket (87mm / 1.1 Thickness) $175 Cosworth Evo X Head Gasket (87mm / 1.3 Thickness) $175

Cosworth High Performance Head Gaskets are engineered to seal in power under the most demanding conditions. Constructed from stainless steel with a folded stopper layer, each application features superior sealing compared to conventional multi layer steel gaskets. Additionally, Cosworth High Performance Head Gaskets are manufactured from pre-coated die cut stainless steel resulting in uniform coating distribution and consistent shape.

- Individual die cut layers of stainless steel with superior consistency compared to lasercut gaskets
- Pre-coated stainless steel with a 0.25 micron layer of nitrile rubber ensures consistent distribution of coating with no high or low areas
- Manufacturing dimensional tolerance of +/- 0.001
- Die cut manufacturing process ensures smooth edges, unlike laser cut gaskets

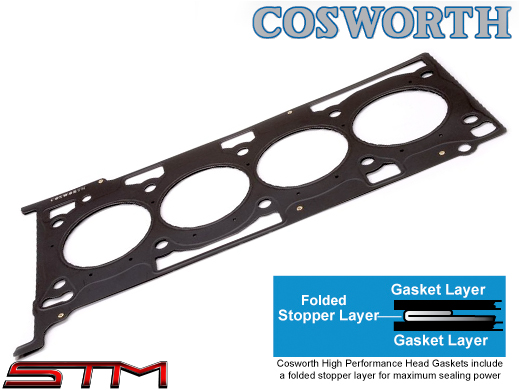

- Cosworth gaskets feature a folded stopper layer for additional sealing pressure around each cylinder. The width of sealing area is specific for each application thereby providing ultimate sealing properties - Available in a range of thicknesses for specific applications (1.1mm or 1.3mm)
- Bore = 87mm
